C-45

Overview

C45 is a medium-carbon engineering steel widely used for general-purpose machine components requiring a useful combination of strength, hardness, machinability and toughness.

Chemical Compositions

C

Si

Mn

P/S

Fe

0.42 – 0.50

0.10 – 0.40

0.50 – 0.80

< 0.035

bal.

Heat Treatment

  • Normalising
  • Annealing
  • Hardening approximately 820–860°C
  • Water or oil quenching depending on section/application
  • Tempering according to required hardness and toughness

Mechanical Properties

Typical normalised/Q&T properties depend on section:

  • Tensile strength: approximately 570–850 MPa
  • Good machinability
  • Moderate toughness
  • Can be induction hardened
  • Surface hardness can be substantially increased by induction/flame hardening

Equivalent Grades

  • DIN: C45 / 1.0503
  • AISI/SAE: 1045
  • JIS: S45C
  • EN: C45

Applications

  • Shafts
  • Axles
  • Pins
  • Gears
  • Rollers
  • Machine components
  • Bushes
  • Studs
  • General engineering parts

Available Forms

  • Round bars
  • Flats

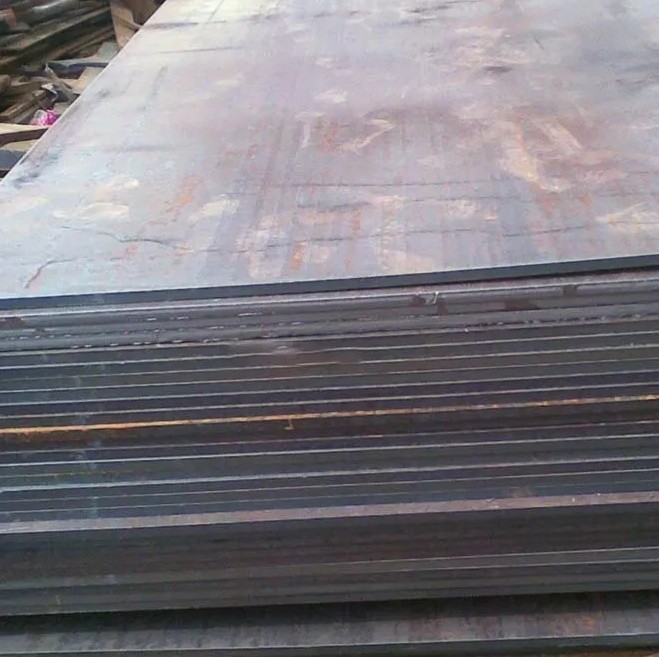

  • Plates
