D2

Overview

D2 is a high-carbon, high-chromium cold-work tool steel with excellent abrasion and wear resistance. It is an air-hardening grade with relatively low dimensional distortion during hardening.

Chemical Composition

C

Si

Mn

Cr

Mo

V

P/S

1.40 – 1.60

0.10 – 0.60

0.10 – 0.60

11.00 – 13.00

0.70 – 1.20

0.50 – 1.10

<0.03 each

Heat Treatment

  • Soft annealing around 850–900°C
  • Austenitizing approximately 1010–1050°C
  • Air/gas or controlled quenching
  • Double tempering
  • Typical service hardness around 58–62 HRC

Mechanical Properties

  • Hardened hardness: approximately 58–62 HRC
  • Excellent abrasion resistance
  • High compressive strength
  • Good dimensional stability
  • Moderate toughness

Equivalent Grades

  • AISI: D2
  • DIN: 1.2379
  • DIN: X153CrMoV12
  • JIS: SKD11

Applications

  • Blanking dies
  • Punches
  • Stamping dies
  • Forming dies
  • Shear blades
  • Industrial knives
  • Slitters
  • Thread rolling dies
  • Scrap choppers
  • Wear components

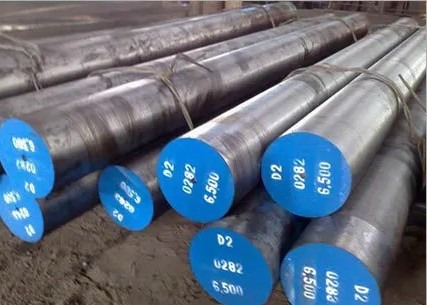

Available Forms

  • Round bars
  • Flats
  • Plates
