EN47

Overview

EN47 is a silicon-chromium spring steel offering high elastic strength, fatigue resistance and good resilience.

Chemical Compositions

C

Si

Mn

Cr

P/S

0.45 – 0.55

0.15 – 0.50

0.50 – 0.80

0.80 – 1.20

< 0.04

Heat Treatment

  • Austenitizing approximately 830–860°C
  • Oil quenching
  • Tempering generally around 400–550°C, according to required spring properties
EN47

Mechanical Properties

  • High elastic limit
  • High fatigue resistance
  • Good resilience
  • Typical tempered hardness approximately 40–50 HRC, depending on treatment

Equivalent Grades

  • EN: EN47
  • DIN: 50CrV4 / 1.8159
  • AISI: 6150
  • JIS: SUP10

Applications

  • Leaf springs
  • Coil springs
  • Automotive springs
  • Spring washers
  • Suspension components
  • High-stress elastic components

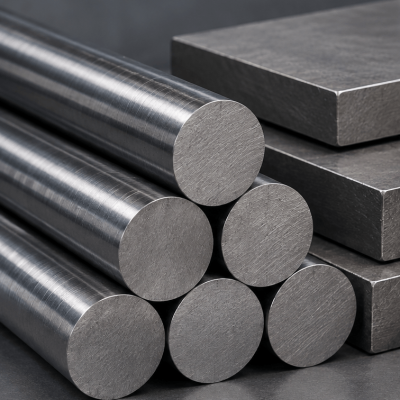

Available Forms

  • Round bars
  • Flats
  • Plates
