P20

Overview

P20 / 1.2311 is a pre-hardened plastic mould steel offering good machinability, toughness, polishability and dimensional stability. It is commonly supplied in the pre-hardened condition, reducing the need for additional heat treatment after machining.

Chemical Composition

C

Si

Mn

Cr

Mo

P/S

0.35 – 0.45

0.20 – 0.40

1.30 – 1.60

1.80 – 2.10

0.15 – 0.25

< 0.35 each

Heat Treatment

  • Normally supplied quenched and tempered/pre-hardened.
  • Typical delivery hardness: approximately 280–325 HB.
  • Additional hardening can be performed when required.
  • Nitriding and surface treatments are possible.

Mechanical Properties

  • Delivery hardness: approximately 280–325 HB.
  • Equivalent tensile strength in tempered condition can be around 950–1100 MPa.
  • Good toughness.
  • Good machinability.
  • Good polishability.

Equivalent Grades

  • AISI: P20
  • DIN: 1.2311
  • DIN: 40CrMnMo7
  • Approx. Chinese: 3Cr2Mo

Applications

  • Injection moulds
  • Plastic mould cavities
  • Mould bases
  • Die-casting mould components
  • Mould frames
  • Dies and tooling
  • Large mould components
  • Nitrided mould components

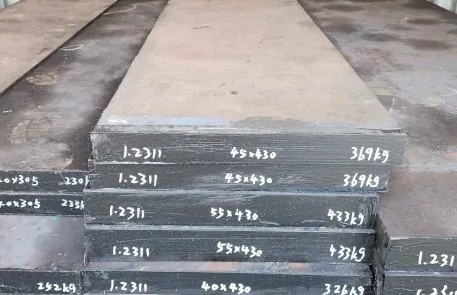

Available Forms

  • Round bars
  • Flats
  • Plates
